Digital Measuring Systems

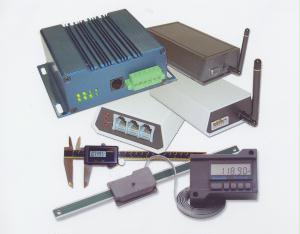

Accurate Technology has introduced a line of multiplexers for their digital measuring systems. The multiplexers are available in three models: ProMUX-3, with three inputs and one RS232 output; ProMUX-4 and -8 with either four or eight inputs and one RS232 or RS422 output; and ProMUX-RF with one input and a wireless transmission to a receiver with RS232 output.

The systems will support all of the company's ProScale measuring products as well as the complete line of Mitutoyo SPC enabled products.

The ProMUX-3 and ProMUX-RF will work with or without the standard ProScale digital readouts. ProMUX-3 is powered by a plug-in 110/220VAC power supply, and internal rechargeable batteries power ProMUX-RF. They are both ideal for multiplexing and sending SPC data to a PC.

ProMUX-4 and ProMUX-8 each eliminate the need for the digital readout and accept the ProScale encoder output or Mitutoyo SPC signal directly. These systems are powered by a user supplied 10-24 VDC. The -4 and -8 models can be cascaded to provide up to 128 channels of input for large scale data collection or multiple inputs to a PLC or controller.

For more information, contact Ed Fiantaca, Accurate Technology Inc., 270 Rutledge Road, Fletcher NC, 828-654-7920, Fax: 828-654-8824, E-mail: info@accurate-technology.com, Web: www.proscale.com.
