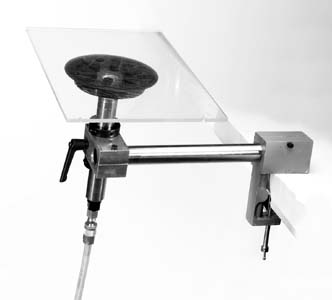

RADIAL ARM VACUUM CLAMP

The Radial Arm Multi-Angle Rotating Vacuum Clamp can be clamped to a work bench or can be furnished with a pillow block assembly for permanent mounting. The vacuum cup is designed to rotate and can then be locked in any position. In addition, it can then be set from horizontal to vertical position, or any anlge in between. Vacuum cups from 3" to 12" are available. The vacuum is created by use of an air operated Venturi pump with manual slide valve. A foot control using an electric vacuum pump is also available.

For more information, contact Sandy Zimmerman, VACUUMCLAMPCOMPANY, P.O Box 2732 - Westport, CT 06880, 203-227-0472, Fax 203-226-6341, E-mail: s.zimmerman@snet.net
